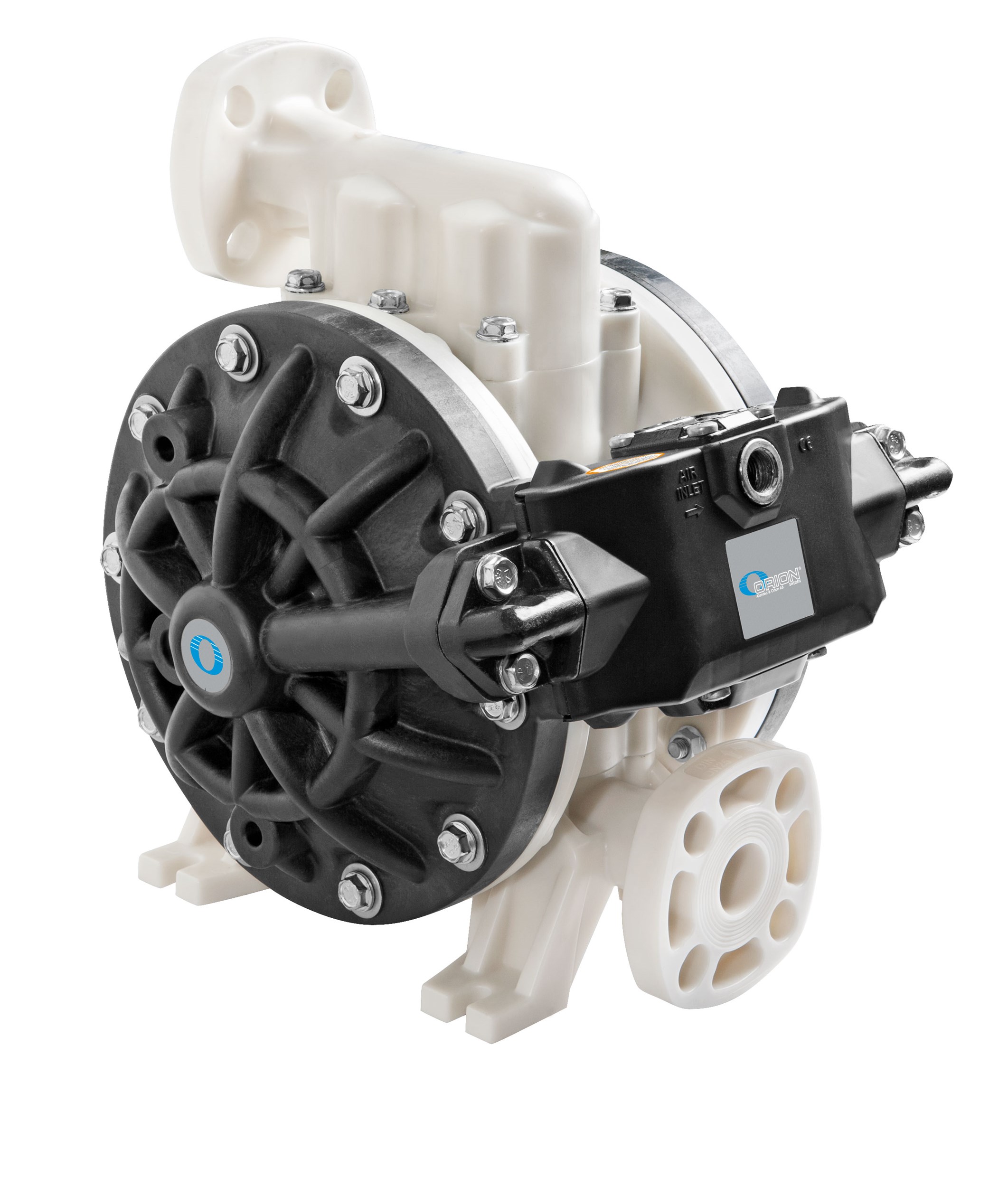

Diaphragm Pump Windscreen fluid/AdBlue® 200 l/min free flow Polypropylene 1" DIN PN-10 DN25
For wall or floor installation, the pump is designed to create maximum vacuum.
Technical data
- Part No
- 22331
- Ratio
- 1:1
- Capacity
- 200 l/min free flow
- Air connection
- 3/8" (F) BSP
- Maximum air pressure
- 0,8 (8) MPa (bar)
- Seals
- FKM / Viton®
- Material pump body
- Polypropylene
- Material diaphragm
- TPE / Hytrel®
- Material balls
- PTFE / Teflon®
- Connection
- 1" DIN PN-10 DN25
- H.S. Code
- 84138100
