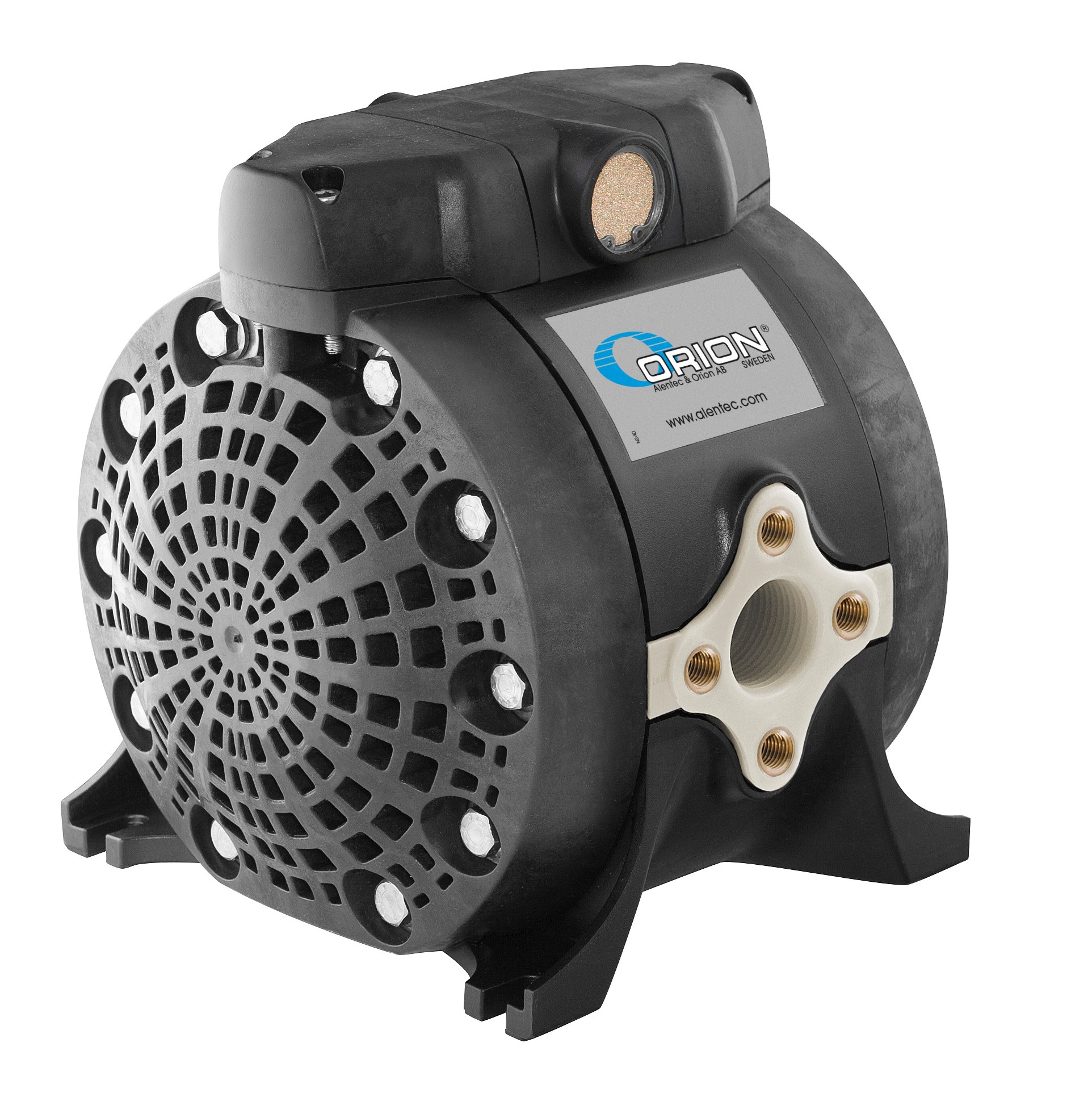

Diaphragm Pump Windscreen fluid/AdBlue® 100 l/min free flow

Air Operated Diaphragm Pump. Made in Polypropylene.

Download picture

Technical data

Part No: 22325
Ratio: 1:1
Media: Windscreen fluid/AdBlue®
Capacity: 100 l/min free flow
Air connection: 3/8" (F) BSP
Maximum air pressure: 0,8 (8) MPa (bar)
Outlet: 1" (F) BSP
Seals: FKM / Viton®
Max suction height: 7 m
Material pump body: Polypropylene
Material diaphragm: TPE / Hytrel®
Material balls: PTFE / Teflon®
Material ball valve seats: Stainless steel (AISI 316)
Classification
Connection: 1" - 1" (F)-(F) BSP
H.S. Code: 84138100

Downloads

Diaphragm_pumps_EN_SE_2c.pdf
