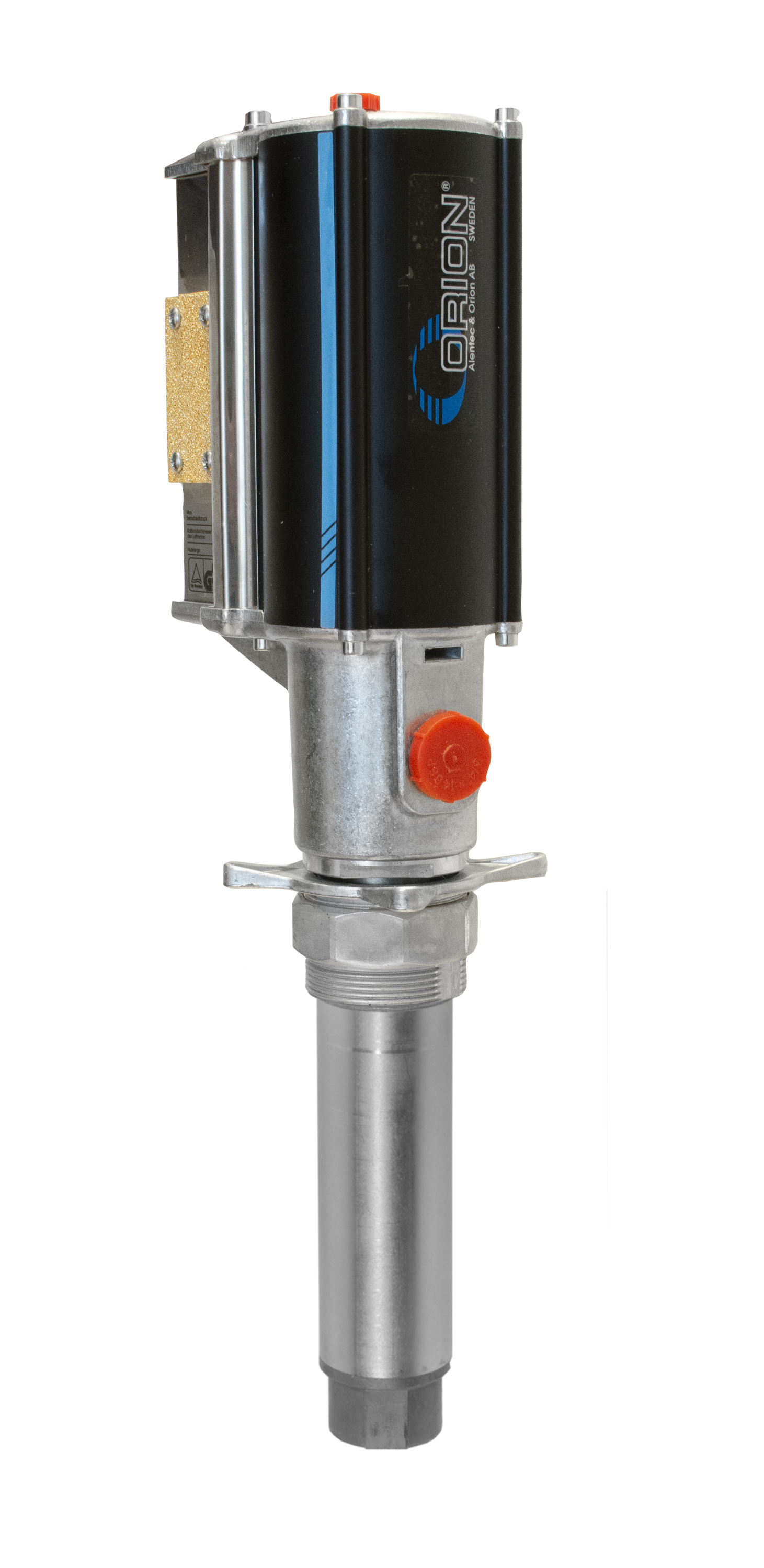

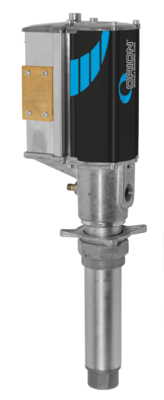

Suction & waste oil pump ratio 5:1. 38 l/min free flow
Double acting, air operated oil pump for non-corrosive liquids, waste oil etc. For wall or floor installation, the pump is designed to create maximum vacuum and will not race when there is no liquid in the suction side. Recommended when you can’t control the pumping process or when using suction probes. In other cases use the standard oil pumps.
Technical data
- Part No
- 22875
- Ratio
- 5:1
- Capacity
- 38 l/min free flow
- Air connection
- 1/4" (F) BSP
- Maximum air pressure
- 1,0 (10) MPa (bar)
- Inlet
- 1" (F) BSP
- Outlet
- 3/4" (F) BSP
- H.S. Code
- 84135069
