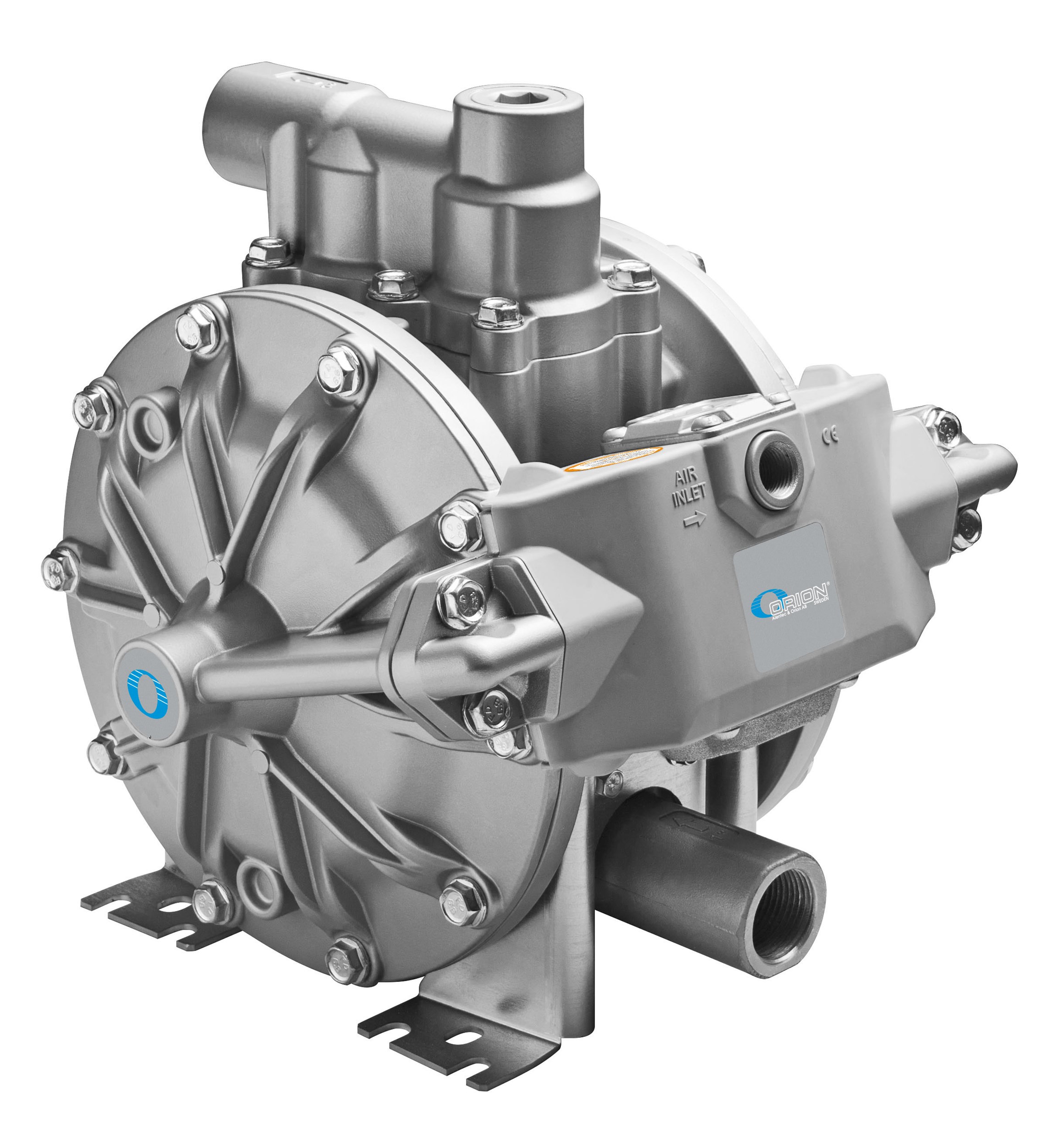

Diaphragm pump Oil/Glycol 200 l/min free flow

Air Operated Diaphragm Pump. For non-corrosive liquids, waste oil etc. For wall or floor installation, the pump is designed to create maximum vacuum.

Technical data

Part No

22332

Ratio

1:1

Media

Oil/Glycol

Capacity

200 l/min free flow

Air connection

3/8" (F) BSP

Maximum air pressure

Max 0,8 (8) MPa (bar)

Inlet

1" (F) BSP

Outlet

1" (F) BSP

Seals

NBR / Buna-N

Max suction height

8 m

Material pump body

Aluminium

Material diaphragm

TPE / Hytrel®

Material balls

POM / Acetal

Material ball valve seats

TPE / Hytrel®

Classification

Connection

1" (F)-(F) BSP

H.S. Code

84138100

Downloads

• 22331_22332_EN_SE.pdf
