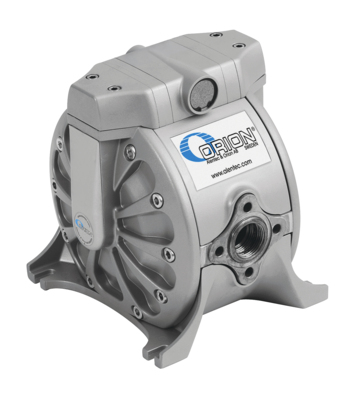

Diaphragm pump for Oil Oil/Glycol 100 l/min free flow

Air Operated Diaphragm Pump. For non-corrosive liquids, waste oil etc. For wall or floor installation, the pump is designed to create maximum vacuum.

Download picture

Technical data

Part No: 22320
Ratio: 1:1
Media: Oil/Glycol
Capacity: 100 l/min free flow
Air connection: 3/8" (F) BSP
Maximum air pressure: 0,8 (8) MPa (bar)
Inlet: 1" (F) BSP
Outlet: 1" (F) BSP
Seals: NBR / Buna-N
Max suction height: 7 m
Material pump body: Aluminium
Material diaphragm: NBR / Buna-N
Material balls: NBR / Buna-N
Material ball valve seats: Stainless steel (AISI 316)
Classification
Connection: 1" (F)-(F) BSP
H.S. Code: 84138100
