Control panel for drum or tanks

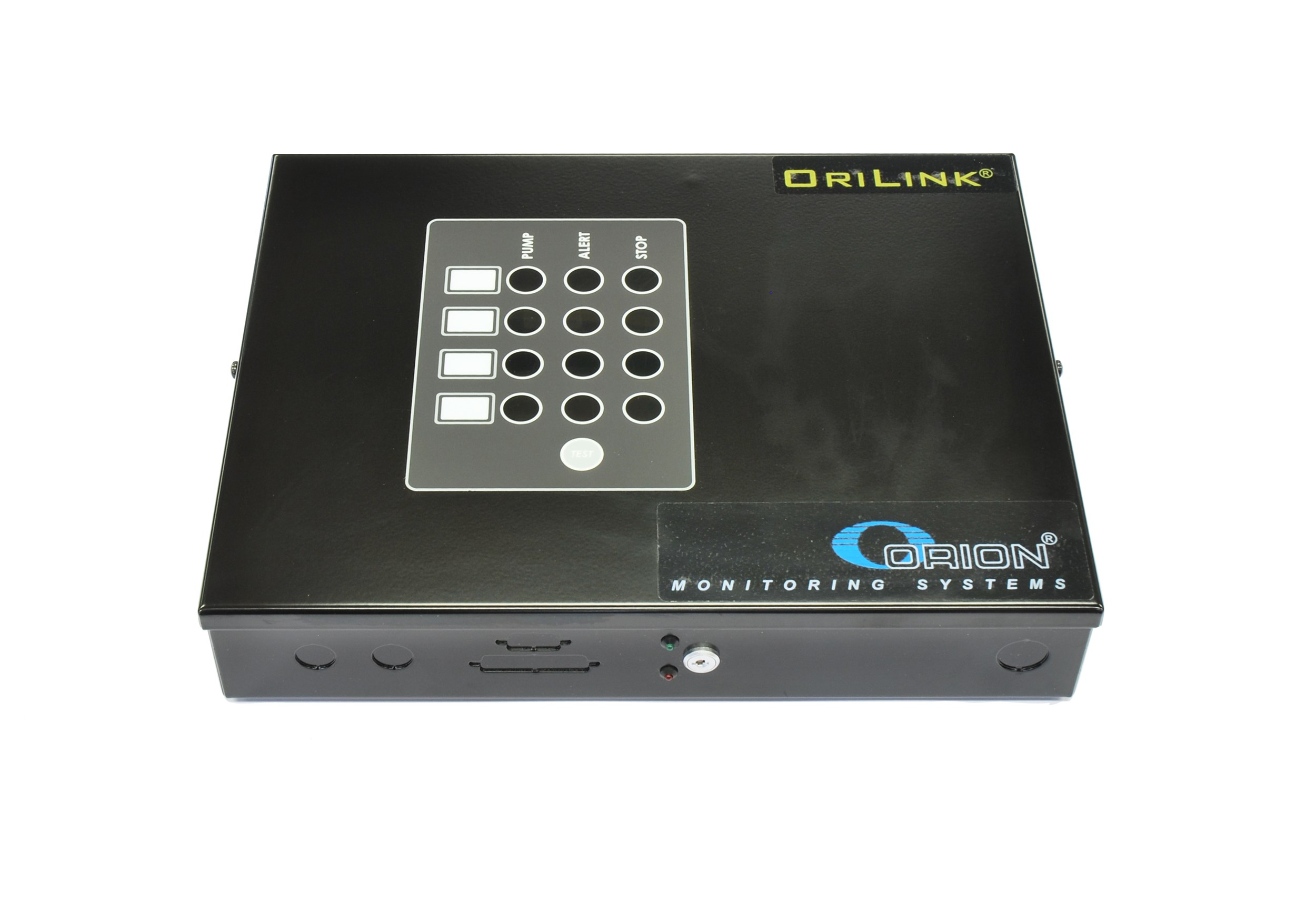

Protects the pneumatic pumps from dry pumping and the waste oil tanks from over filling. The panel can handle 4 different pumps/tanks at the same time. On the front of the panel there are 8 lamps, one stop and one alarm per drum/tank with test button. Two levels for each drum/tank. In case of inflammable fluids, the unit must be completed with Model 23187. The unit can be connected to the OriLink® system. (230 VAC, Solenoid Valve 24 V DC).

Send inquiry

Download picture

Technical data

Part No: 23430
Voltage: 230 V AC
Power consumption: 0,8 A
H.S. Code: 84715000

Downloads

23430_R10GBM.pdf
