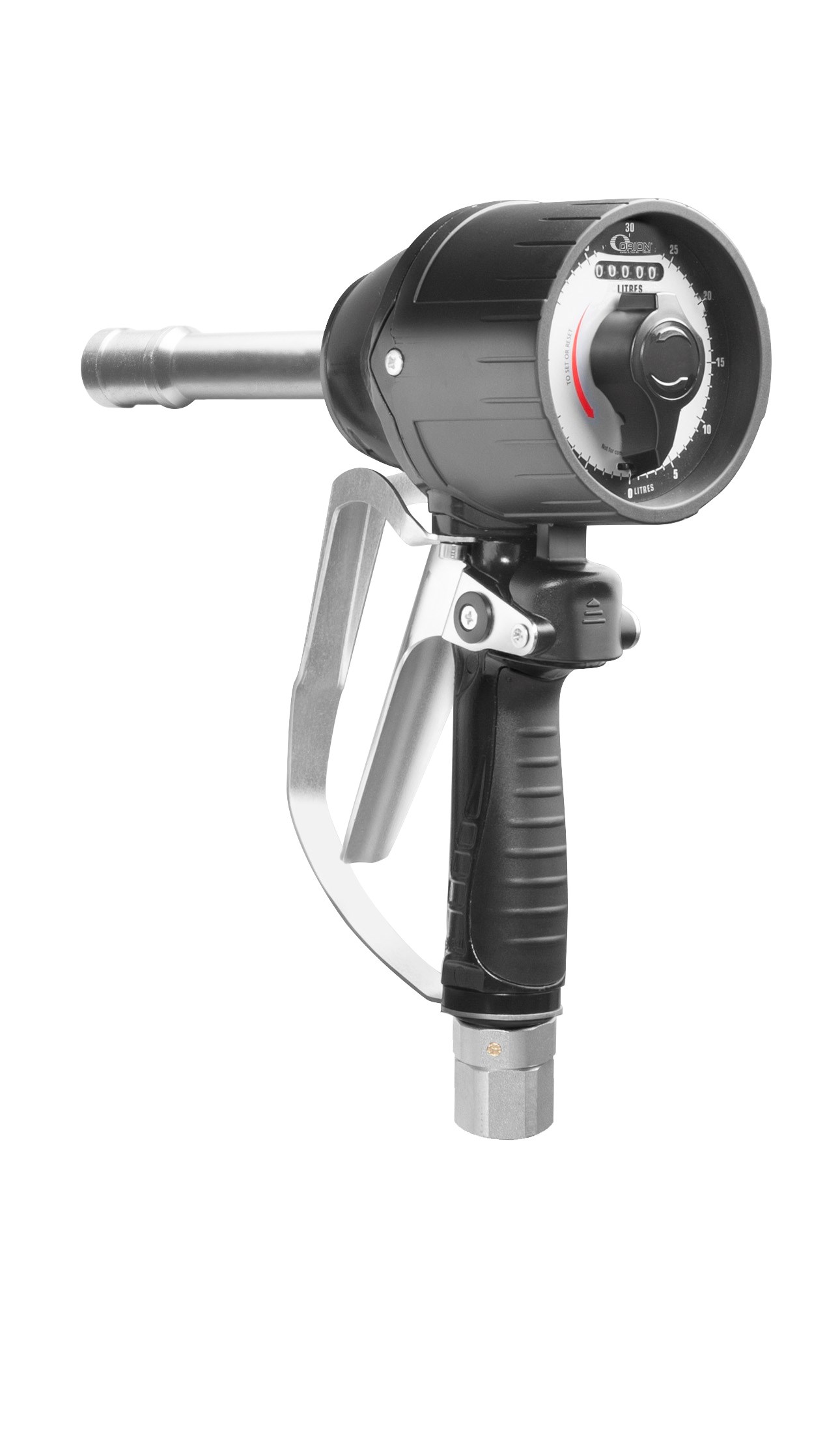

Mechanical pre-set hose end meter with rigid outlet tube 1/2" (F) BSP

Very robust rotary-piston type, including swivel, inlet strainer, outlet hose and non-drip nozzle. For automatic operation set the dial pointer to the quantity needed, actuate the trigger for automatic latching and the valve will deliver exactly the volume required and then shut off.. . Functions:. • 5 digit display. • Resettable trip meter. • Non resettable totaliser. • Accuracy ±0,65%. • No batteries required, Environment friendly

Technical data

Part No

24797

Capacity

2 - 30 l/min free flow

Maximum working pressure

10 (100) MPa (bar)

Connection

1/2" (F) BSP

H.S. Code

90261021

Downloads

• 24797_EN_SE_1a.pdf
