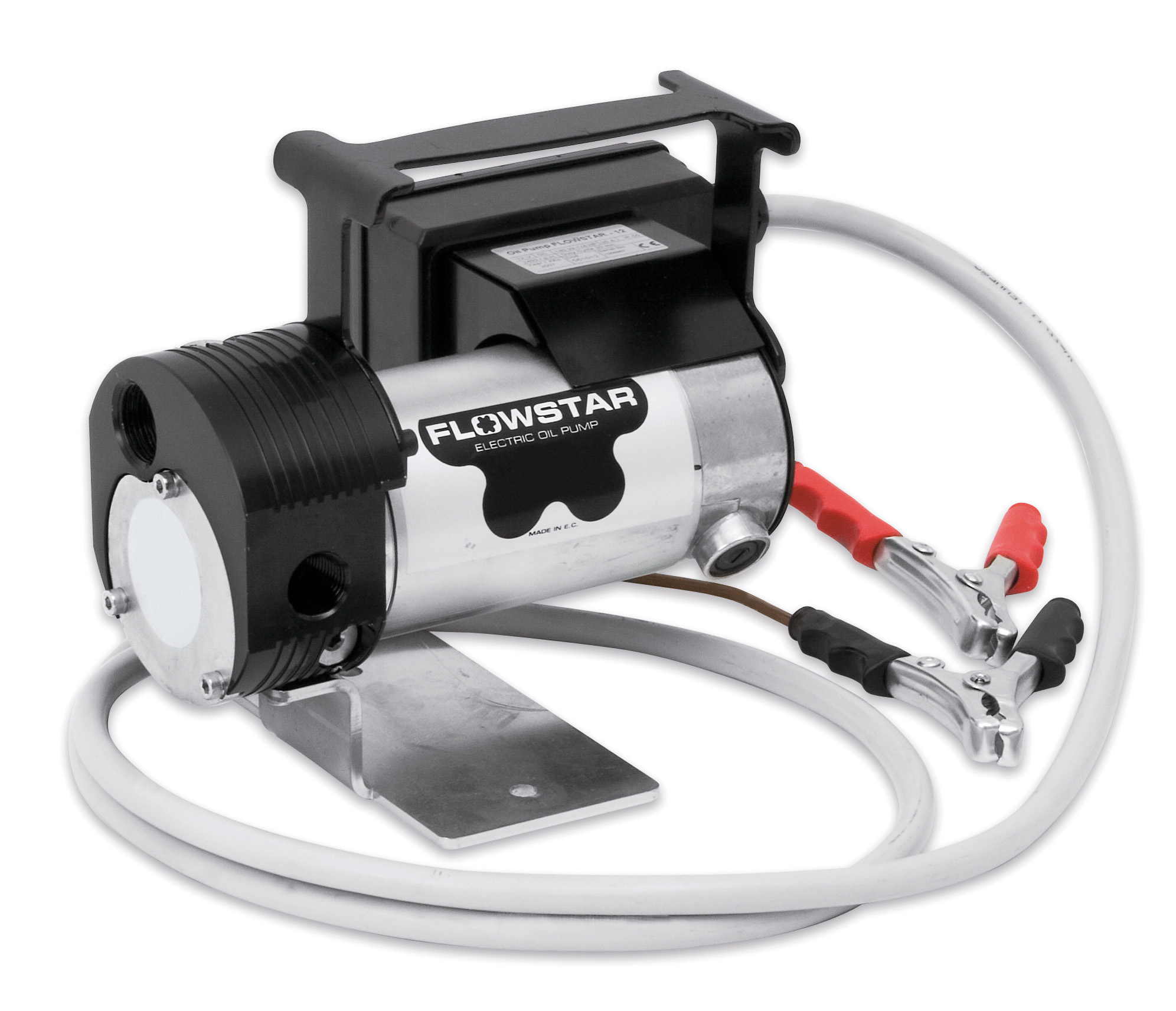

Electric oil pump 24V portable

An ideal solution when there is no access to compressed air. Self-priming gear pump with sintered precision gears, pump housing in cast iron with integrated adjustable overflow valve in pump housing. Integrated fuse, operating interval max 30 minutes

Technical data

Part No

52424

Capacity

5,5 l/min free flow

Inlet

3/4" (F) BSP

Outlet

1/2" (F) BSP

Maximum working pressure

1,2 (12) MPa (bar)

Motor

200 W

Voltage

24 V DC

IP

55

Max suction height

2,5 m

Packaging LxWxH

0,36 x 0,36 x 0,27 m

Weight (Gross)

6,8 kg

H.S. Code

84137045
