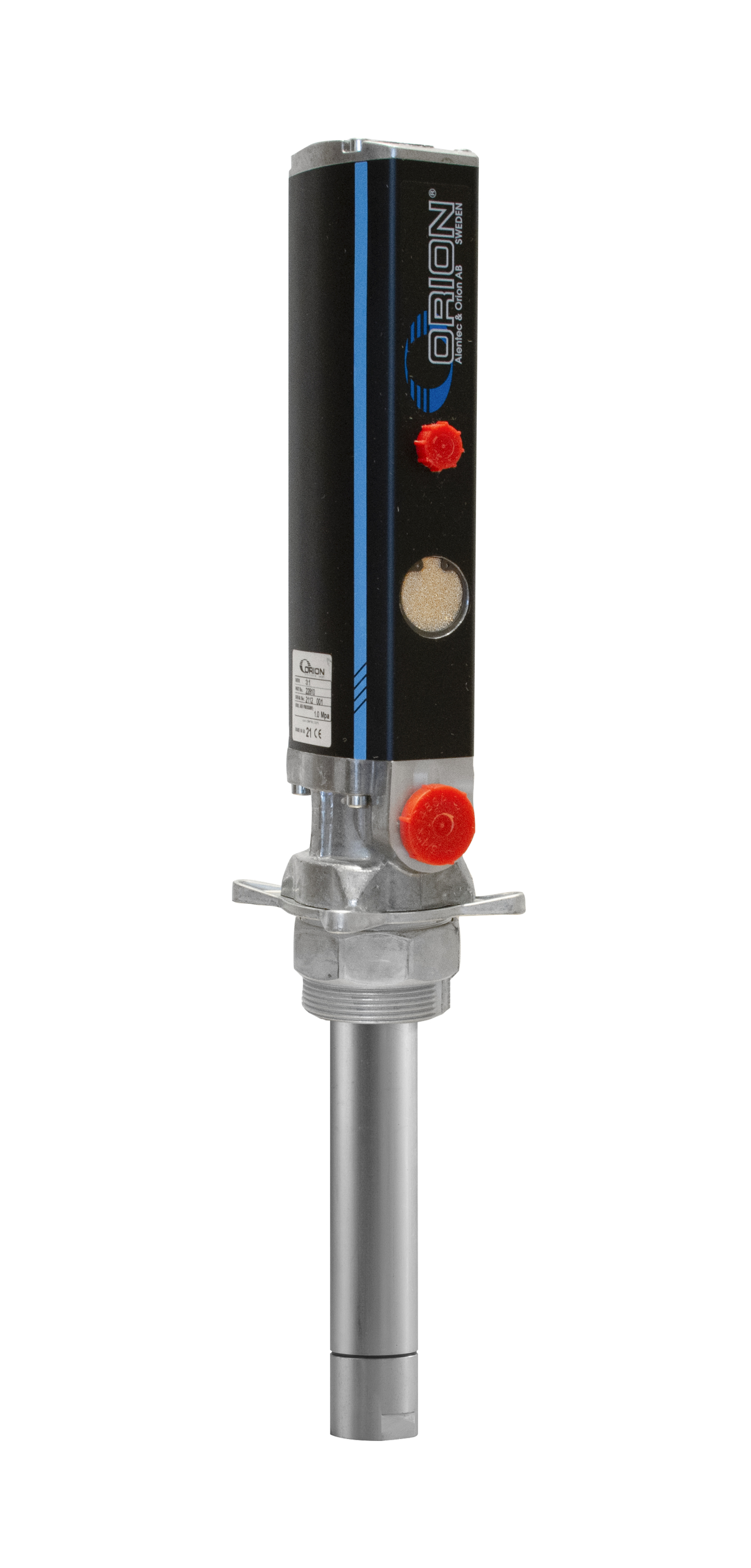

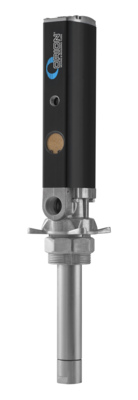

Pump 3:1 oil stub 22 l/min free flow
Low Pressure Pump. For the smaller oil distribution system and lower vicosity oils. Suitable for connection to a bulk tank or drum. Remote stub pump version can be wall or floor mounted. Double acting air operated pump for oil and non-corrosive liquids. Includes a bung adapter G2" (m).
Technical data
- Part No
- 22810
- Ratio
- 3:1
- Capacity
- 22 l/min free flow
- Air connection
- 1/4" (F) BSP
- Maximum air pressure
- 1 (10) MPa (bar)
- Recommended air pressure
- 0,3 (3) - 0,5 (5) MPa (bar)
- Inlet
- 3/4" (F) BSP
- Outlet
- 3/4" (F) BSP
- H.S. Code
- 84135069
