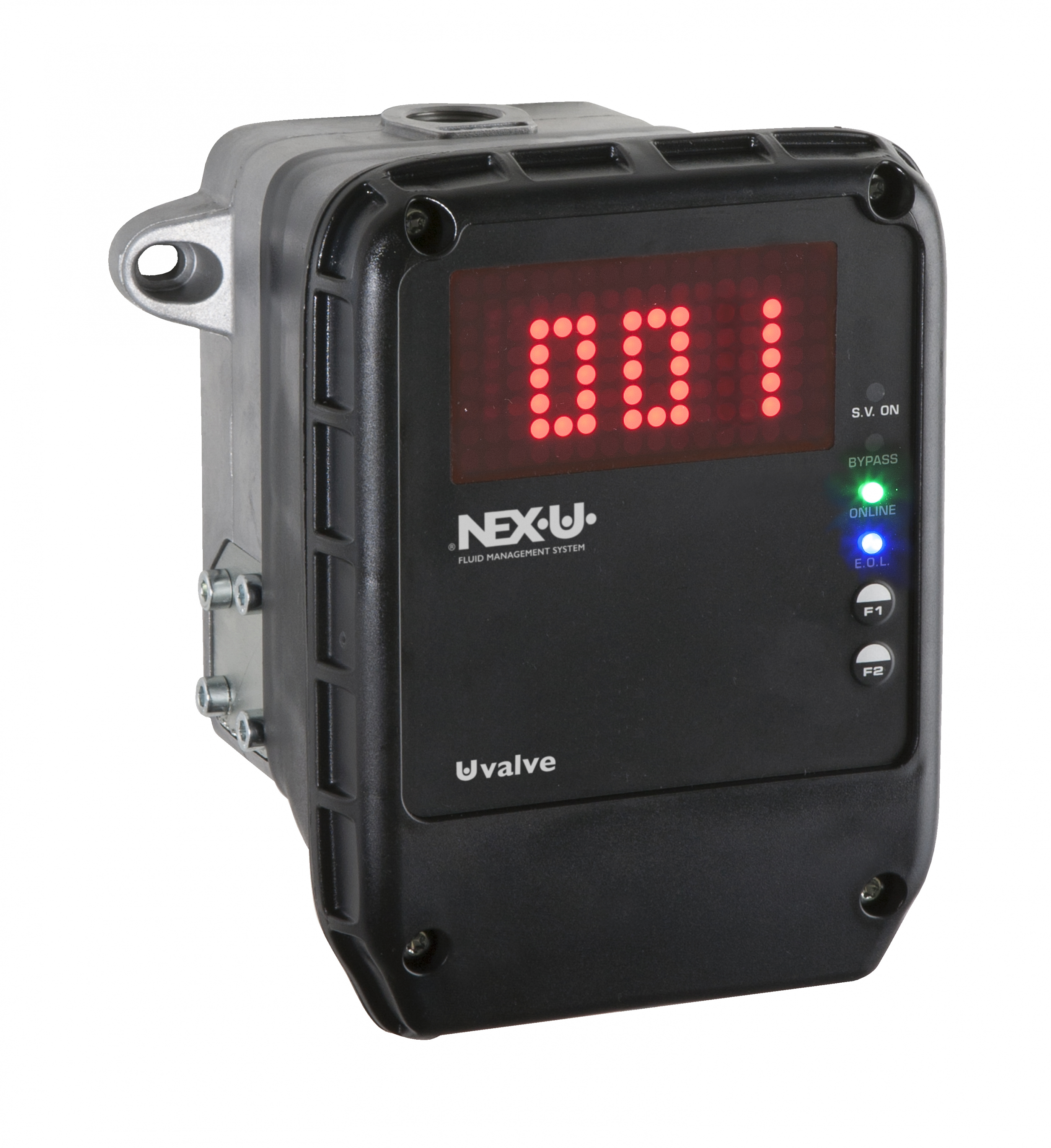

NEX·U·® U·valve Flow control unit with Bluetooth®

Combined pulse meter, a solenoid valve, screen filter with the electronics required to control the meter. Big LED display showing the dispense point number and delivered volume. Can be connected to U·vision or U·vision+. Communication: CAN bus, Bluetooth®

Technical data

Part No

23850

Capacity

1-30 l/min free flow

Maximum working pressure

10 (100) MPa (bar)

Maximum temperature

-10 - 60 °C

PPU

328

Voltage

24 V AC

Accuracy

0,5 % ±

Power consumption

20 W

Filtration

250 µm

Connection

1/2" (F)-(F) BSP

Maximum viscosity

8-2000 cSt (at 20°C)

H.S. Code

90261021

Downloads

• 23850_23851.pdf
