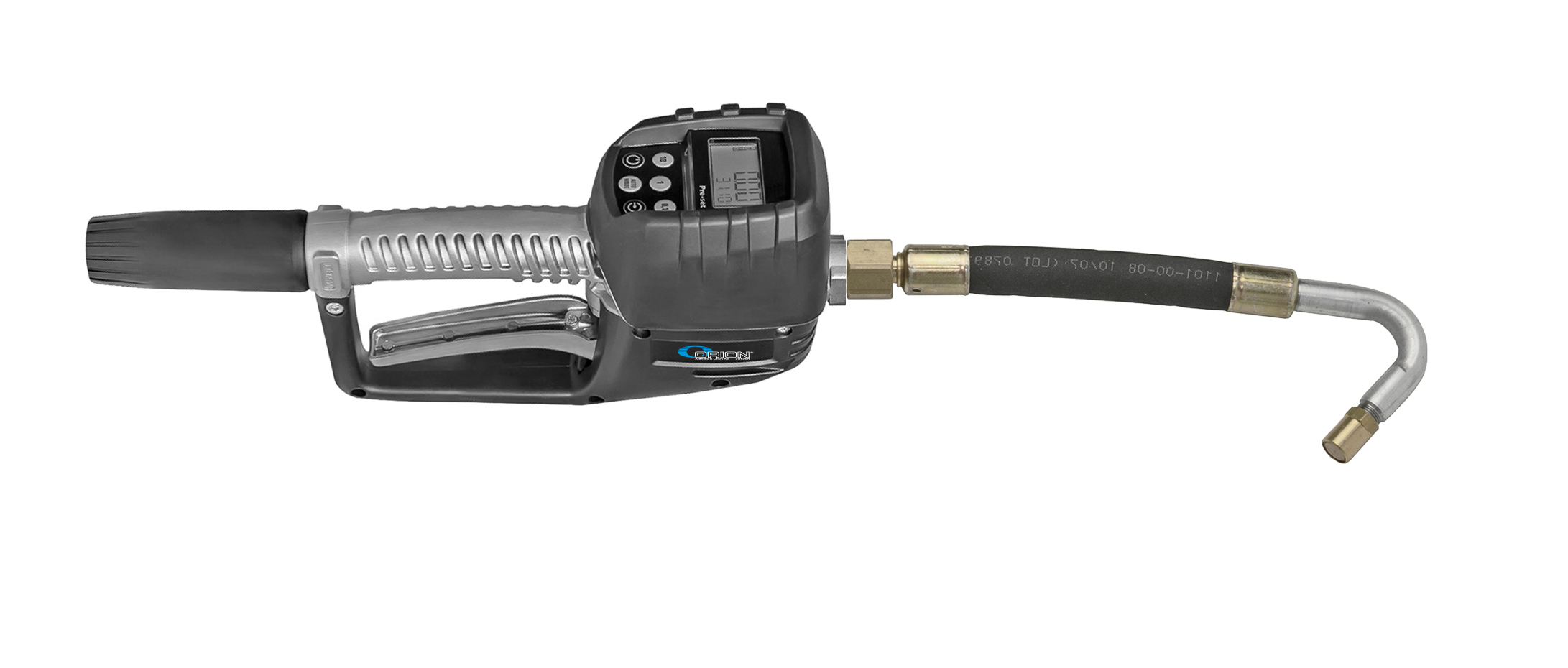

Digital hand meter pre-set with 135° outlet hose, automatic non-drip 1/2" (F) BSP Oil/Glycol
Digital meter with automatic function, the volume to be dispensed can be selected and the meter will shut off automatically. Microprocessor controlled, ergonomically designed with swivel, inlet filter and battery. The trigger can be locked in the open position and then closed with a slight tap on the locking button. Features:• Preset • Up to 10 pre-programmed volumes • Transaction memory 5 last tapping • Zero trip meter • Non-zeroable total counter • Battery indicator • Measuring units Liter, US Gallons, Quarts and Pints
Technical data
- Part No
- 20491
- Media
- Oil/Glycol
- Capacity
- 0,8-30 l/min free flow
- Maximum working pressure
- 10,0 (100) MPa (bar)
- Pre-set
- 0,1 - 999,9 l
- Connection
- 1/2" (F) BSP
- H.S. Code
- 90261021
