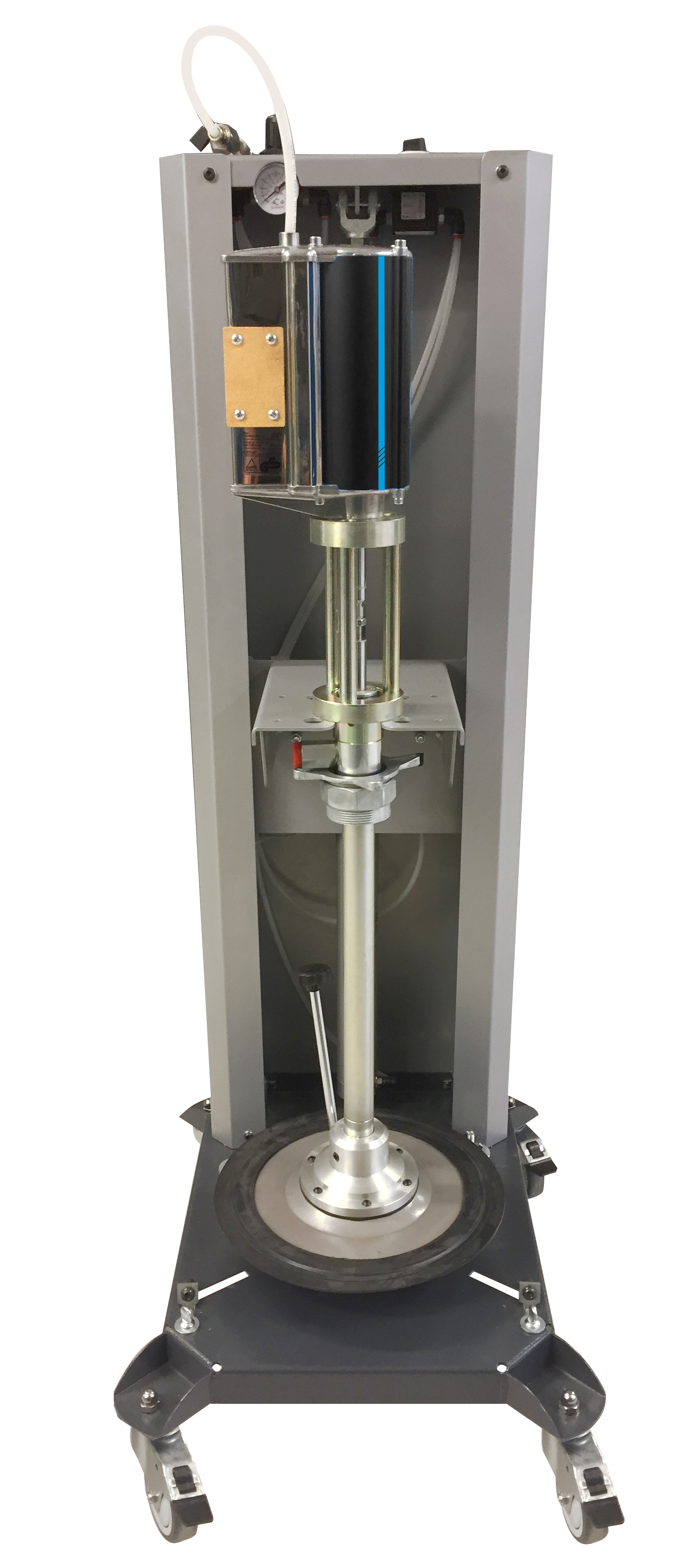

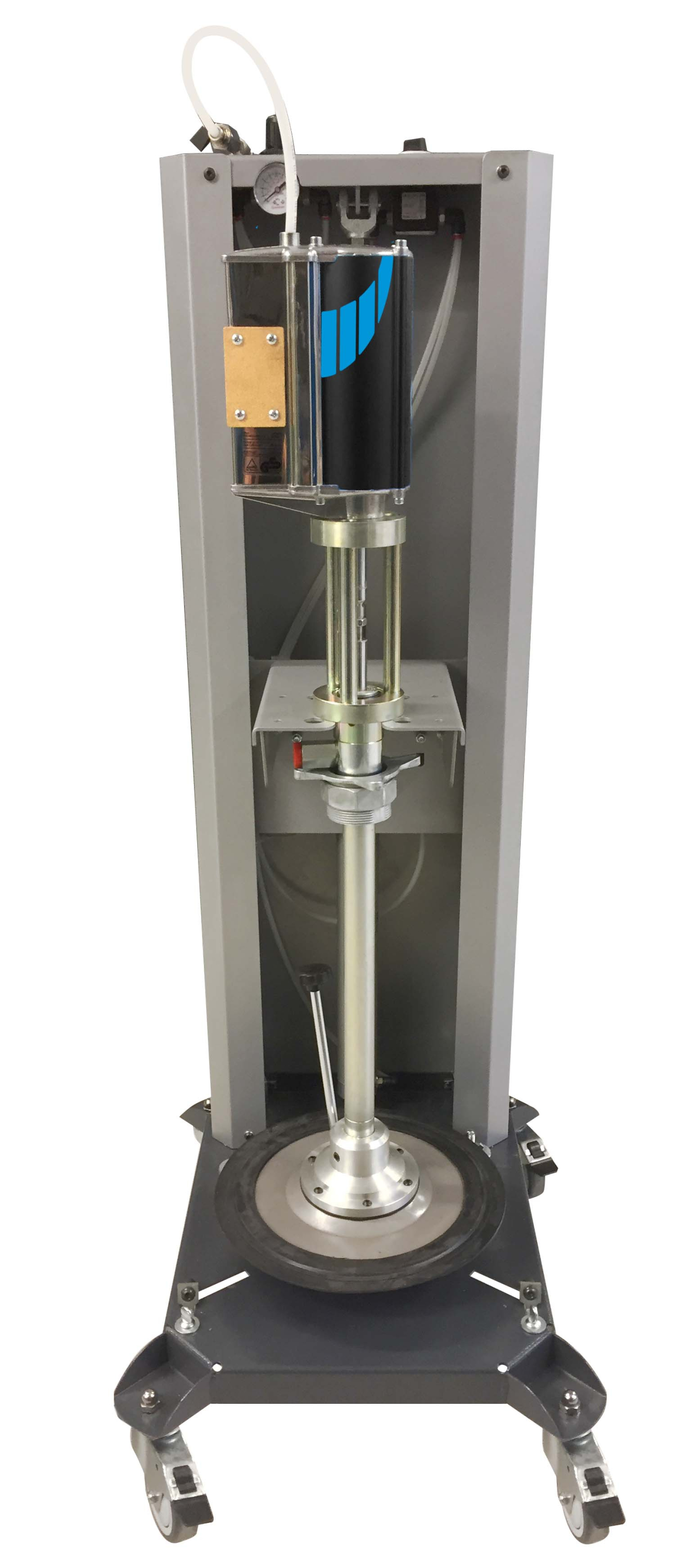

Mobile pump hoist 12-20 kg with pump

Mobile unit designed for use with hard to pump, sticky and high viscosity greases up to NLGI3. A pneumatic piston elevates the pump for replacing an empty pail. The pneumatic piston also pushes down when the pump is in use.

It is ideal for situations where it is important to get all the grease out of the bucket. Applications include expensive grease where complete emptying is essential, dented buckets/drums that cause the follower lid to stick, and easy handling of the grease to avoid debris that can damage the pump or machine.

Technical data

Part No

18200

Capacity

1000 gr/min

Air connection

1/2" (F) BSP

Maximum air pressure

1,0 (10) MPa (bar)

Outlet

3/8" (F) BSP

Length

613 mm

Width

448 mm

Height

1202 mm

H.S. Code

84135069

Downloads

• 18200_EN_SE_1a.pdf
