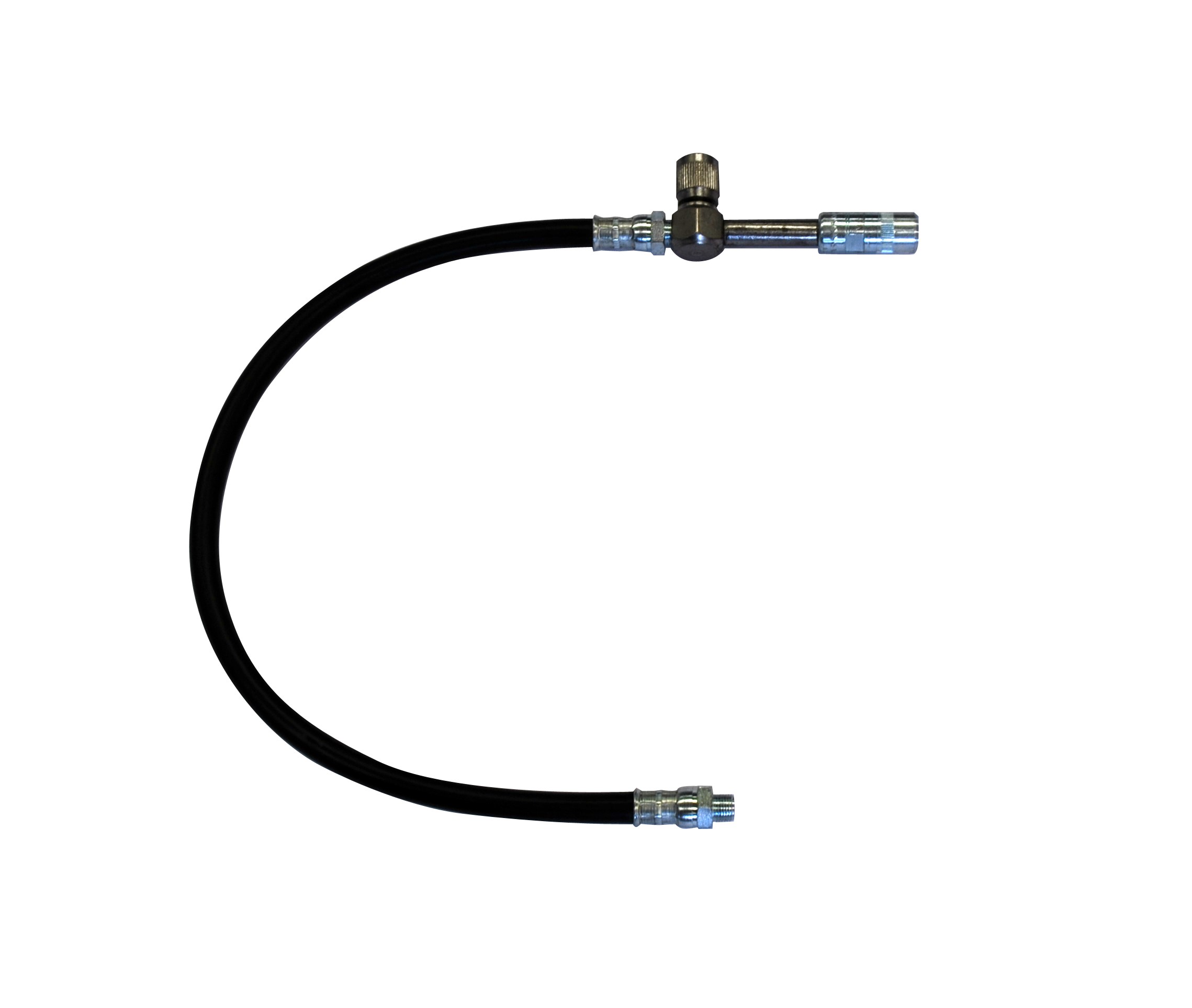

Outlet hose with relief valve

Relieves locked hydraulic nozzles.
Protects both fitting and nozzle from damages and simplifies removal of the nozzle. The pressure is relieved when the valve is opened, the nozzle can then be pulled away straight, without rocking back and forth.

Technical data

Part No

14044AVLAST

Dimension

4,8 (3/16") mm (inch)

Thread

1/8" (M) BSPT

Maximum working pressure

40 (400) MPa (bar)

Length

450 mm

H.S. Code

40094200
