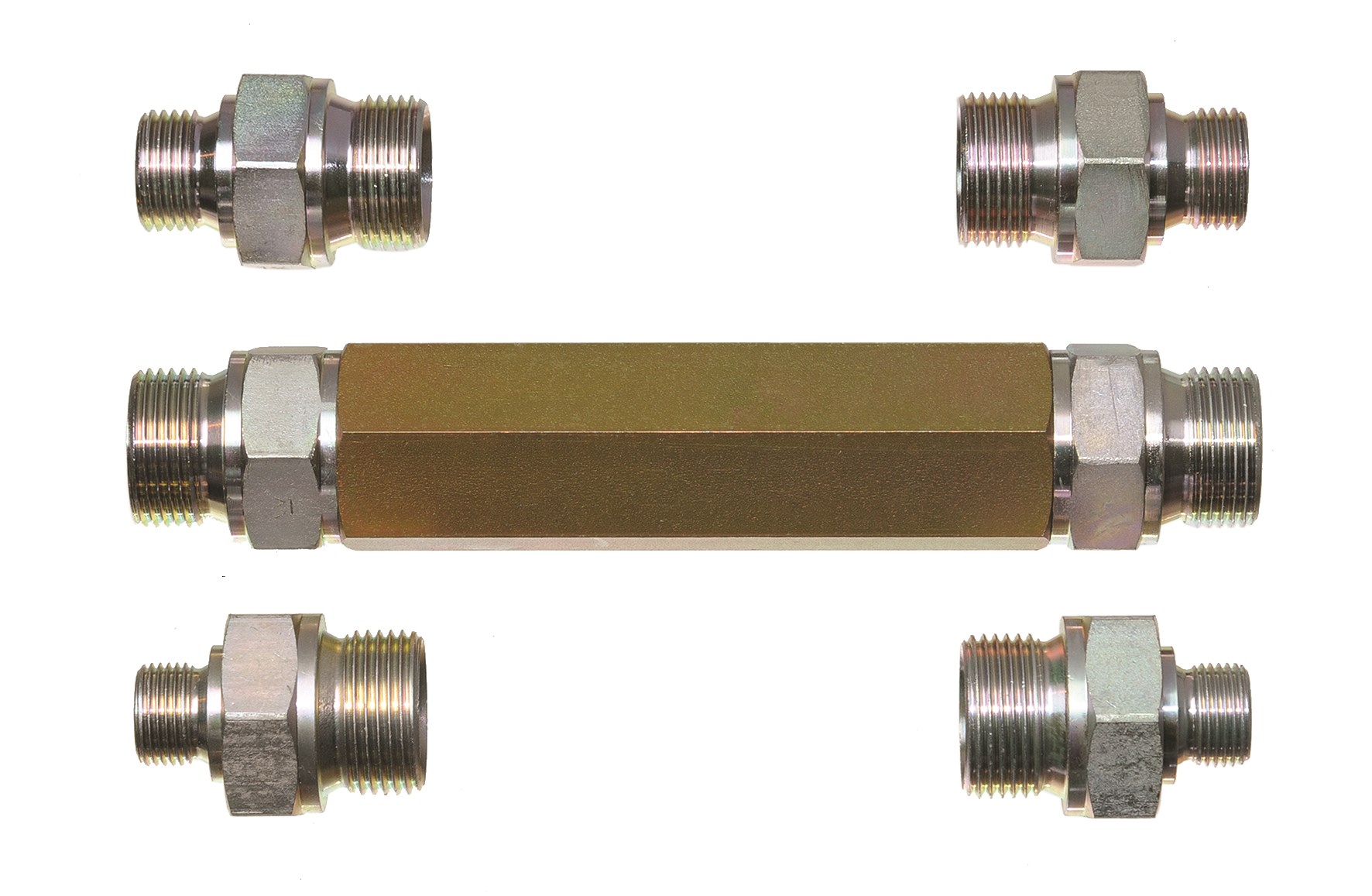

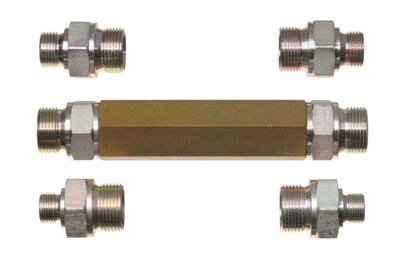

Grease line filter

For installation in grease distribution pipework (grease outlets). Built-up with discs, which provide simplified cleaning. The filter withstands high pressure drops which eliminates the risk of cartridge bursting when contaminated. Max pressure 50 MPa (500 bar). Filter rating 100µm, Connection threads G3/8”, G1/2” and G3/4”.

Send inquiry
Download picture

Technical data

Part No
14527
Thread
3/8" 1/2" 3/4" (M) BSP
Maximum pressure
50 (500) MPa (bar)
Filtration
100 µm
H.S. Code
84139100
