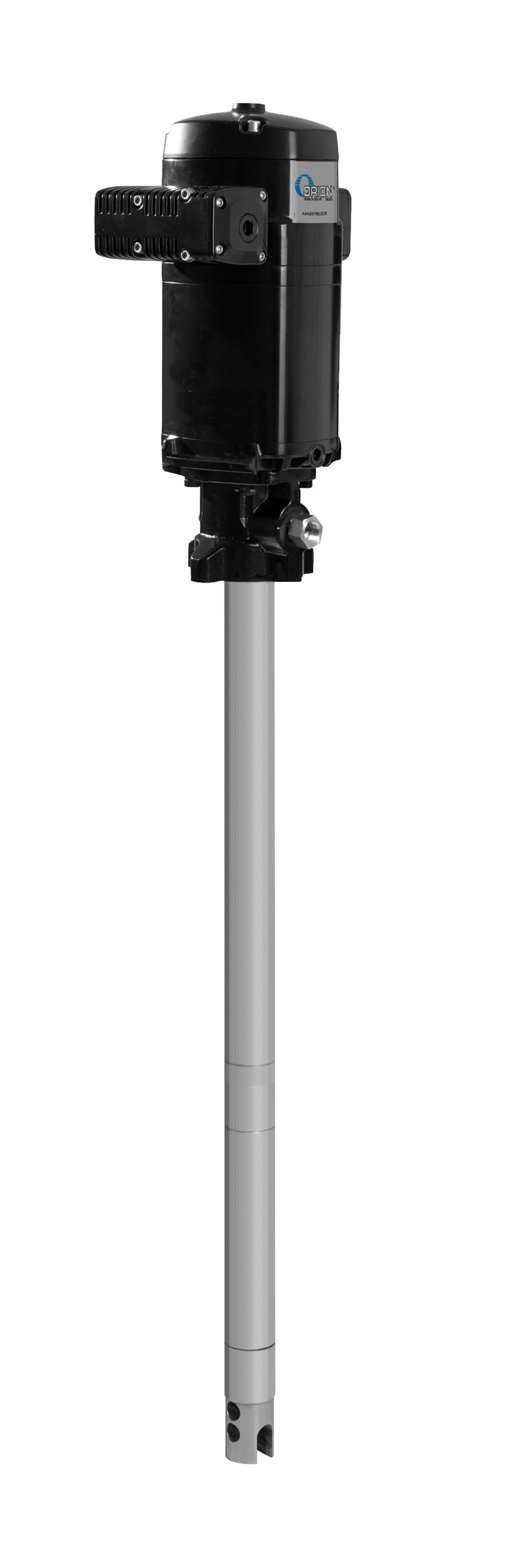

Grease pump 70:1 7500 gr/min 180 kg

High capacity heavy duty grease pump for simultaneous fluid distribution to multiple dispense points, or for pumping long distances (up to 100m). Heavy duty pumps should be used together with Pump Ram system.

Technical data

Part No

12832

Ratio

70:1

Capacity

7500 gr/min

For container

180 kg

Air connection

1/2" (F) BSP

Maximum air pressure

0,7 (7) MPa (bar)

Outlet

1/2" (F) BSP

Pump tube

855 mm

Length

1357 mm

H.S. Code

84135069

Downloads

• 12820-32_EN_SE_1h.pdf
