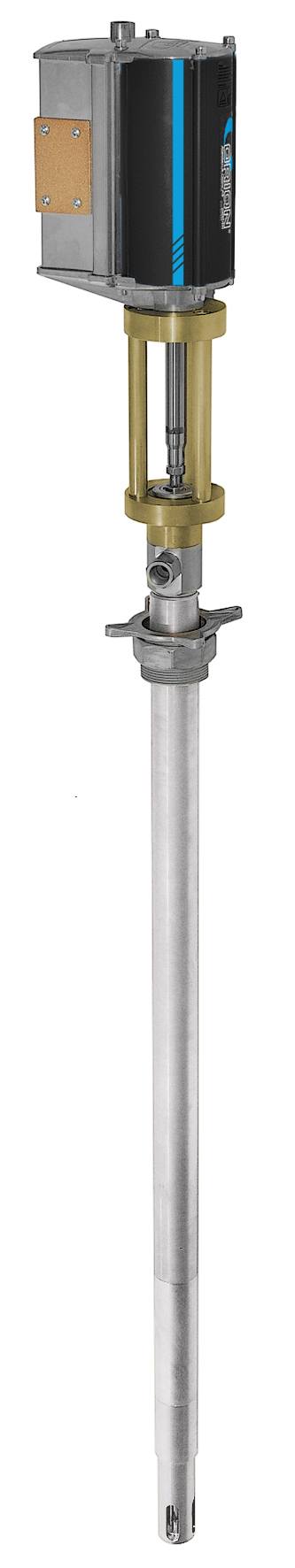

Grease pump separated air motor 60:1 1000 gr/min 180 kg

Air Operated Grease Pump. With separated air motor from thepump tube. Avoid ”sticky” grease to enter into the air motor. For both mobile and fixed installations.. Bung adapter G 2” (part No 28591) included. We recommend air lubricators when using a pump with divorced air motor.

Technical data

Part No

12652

Ratio

60:1

Capacity

1000 gr/min

For container

180 kg

Air connection

1/4" (F) BSP

Maximum air pressure

1 (10) MPa (bar)

Recommended air pressure

0,4 (4) - 0,7 (7) MPa (bar)

Outlet

3/8" (F) BSP

Pump tube

930 mm

Length

1370 mm

H.S. Code

84135069

Downloads

• 12750-52_12755-57_EN_SE_2a.pdf
