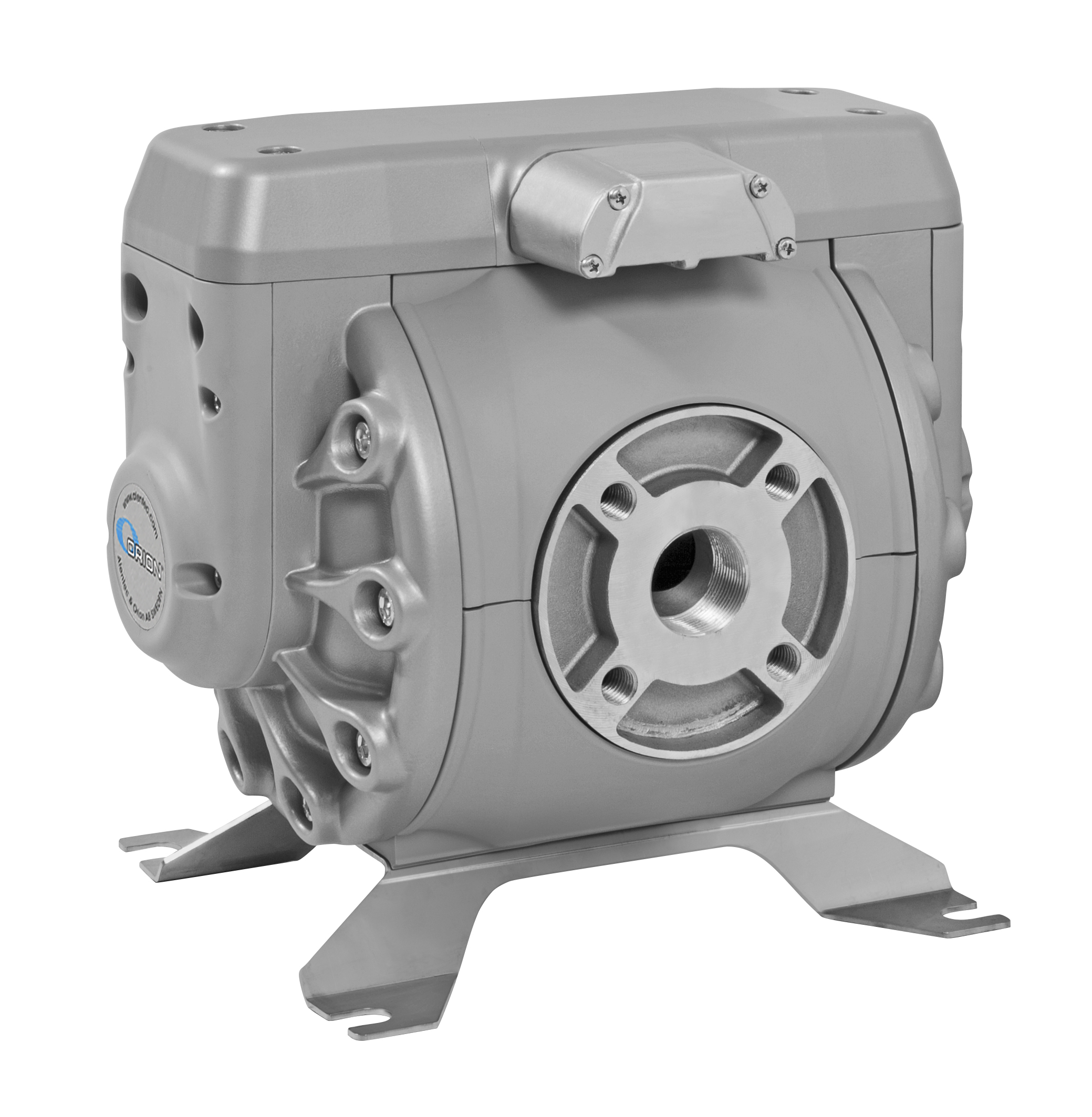

Diaphragm pump Oil/Glycol 250 l/min free flow

For non-corrosive liquids, waste oil etc. For wall or floor installation, the pump is designed to create maximum vacuum.

Technical data

Part No

22330

Ratio

1:1

Media

Oil/Glycol

Capacity

250 l/min free flow

Air connection

1/2" (F) BSP

Maximum air pressure

0,8 (8) MPa (bar)

Inlet

11/2" (F) BSP

Outlet

11/2" (F) BSP

Seals

NBR / Buna-N

Max suction height

8 m

Material pump body

Aluminium

Material diaphragm

TPE / Hytrel®

Material balls

POM / Acetal

Material ball valve seats

Stainless steel (AISI 316)

Classification

Connection

1 1/2" (F)-(F) BSP

H.S. Code

84138100
