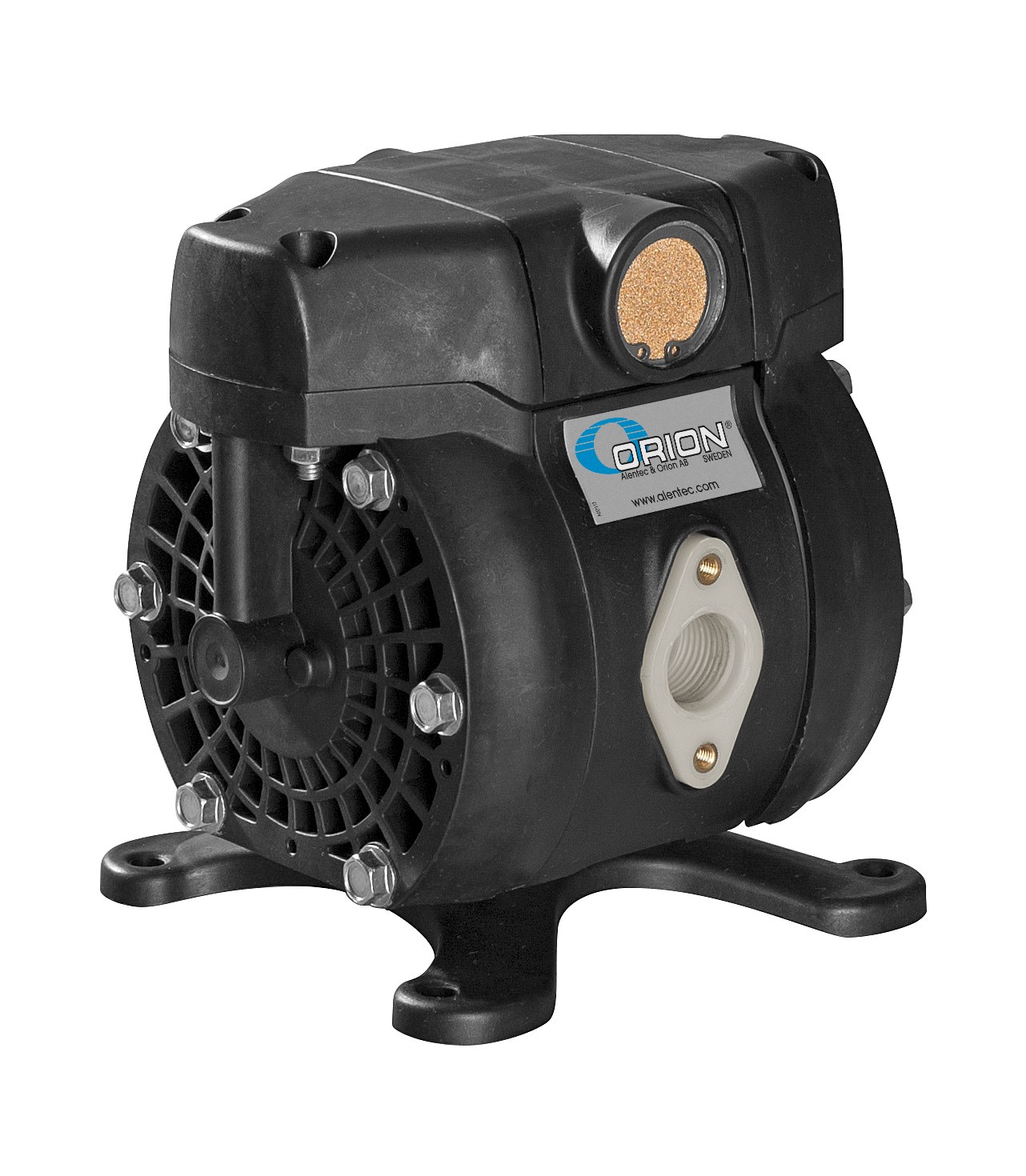

Diaphragm Pump Windscreen fluid/AdBlue® 30 l/min free flow

Diaphragm Pump. Corrosion protected. Pressure ratio 1:1 for windscreen liquid etc. Max 30 litres/min. Connection threads: Liquid. G1/2" Air G3/8"
Note! The pump is not suitable for installation in piped systems. In that case, use pump 22240.

Send inquiry
Download picture

Technical data

Part No
22206
Ratio
1:1
Media
Windscreen fluid/AdBlue®
Capacity
30 l/min free flow
Air connection
3/8" (F) BSP
Maximum air pressure
0,8 (8) MPa (bar)
Seals
FKM / Viton®
Max suction height
4 m
Material pump body
Polypropylene
Material diaphragm
TPE / Hytrel®
Material balls
PTFE / Teflon®
Material ball valve seats
Stainless steel (AISI 316)
Classification
Connection
1/2" - 1/2" (F)-(F) BSP
H.S. Code
84138100
